NFS monitoring and tuning
Introduction
Often performance tuning is the last thing on your mind when you consider Network File Systems (NFS). You're so preoccupied with configuring your file systems properly and ensuring the security of your systems that you might routinely forget that the N in NFS stands for network. Unfortunately, if you don't pay attention to NFS tuning, you might have a poorly performing NFS. Fortunately, IBM has integrated several tools to help monitor and tune NFS on AIX, including nfsstat andnfsmo. This article describes that monitoring and tuning.
As in previous versions of AIX, AIX 7 supports NFS v2, v3, and v4 (with NFS v4 as the default). In general, NFS v4 should be used in preference to previous versions, since it is more efficient and generally handles the performance of large loads and busy network environments. Most modern client operating systems support NFS v4 so there should be no need to support the older versions.
You'll have to tune both the client and the server. This article explains how you can use netpmon to monitor read subroutines and write subroutines for NFS clients, as well as NFS servers. You can also use nmon for a quick snapshot of NFS activity, and you can describe how to use nmon to analyze historically based data. Using netstat, you can validate that your network is healthy, because poor network utilization (or a poorly designed configuration) can result in poor NFS performance. This article also examines utilities such as nfs4cl that can be used for a specific version of NFS. And you'll learn some best practices, including spreading I/O across as many spindles as possible. In this case, you want the CPU load to be the bottleneck, not your I/O system.
Unlike other tuning examples in this series, for NFS you must monitor (and possibly tune) all subsystems including CPU, memory, I/O, and the network. From a client perspective, NFS file systems use disks that are remotely attached. Anything that affects the performance of that mounted disk will affect the performance of the NFS clients. The article also discusses important daemons, such as nfsd and biod, and how they actually tune themselves. You can see the basic interactions between the client and server to help you understand what's going on behind the scenes. Finally, the article emphasizes that, regardless of which subsystem you are tuning, systems tuning is an on-going process. Of course, the best time to start monitoring your systems is from the beginning, before you run into problems and users scream. Because there are so many factors that can influence NFS performance, make changes only one at a time so that you can accurately assess the impact of your change.
Reviewing NFS
This section offers an overview of the NFS as it relates to AIX 7. You can learn how the client and server relate to one another and the various factors that influence NFS performance.
You can choose the version type during the actual mounting of the file system, and you can have different versions of NFS running on the server. NFS now supports both TCP and UDP. Because UDP is faster (it does less), some environments that demand optimum performance (on a LAN) over reliability might perform better with UDP. TCP is more reliable (by establishing connections), and it also provides better performance over a WAN, because its flow control helps minimize network latency.
A benefit of NFS is that it acts independently of machine types and operating systems. It does this through its use of Remote Procedure Calls (RPCs), as shown below in Figure 1.
Figure 1. Interaction between client and server
Figure 1 shows how NFS clients A and B access the data off NFS server Z. The client computers first request access to the exported data by mounting the file system. Then, when the client thread tries to process data within the NFS mounted file system, the data is redirected to biod, which takes the data through the LAN to the NFS server and its nfsd daemon. The server uses nfds to export the directories that are available to its clients.
As you can tell, you'll need to tune the network and I/O parameters. If Server Z is performing poorly, that obviously affects all of its NFS clients. If possible, tune the server specifically to function as an NFS server (more about that later).
What about the biod daemon? This daemon is required to perform both read-ahead and write-behind requests. The bioddaemon improves overall NFS performance as it either empties or fills up the buffer cache, acting as a liaison of the client applications. As shown in Figure 1, the biod daemon sends the requests to the server. On the other hand, nfsd is the liaison that provides NFS services to clients. When the server receives biod communication from the client, the server uses the nfsddaemon until the request is completed.
How is it that NFS was not stateful until Version 4, even though it could use TCP as early as Version 2? Figure 2 shows where NFS resides in relation to the TCP/IP stack and the OSI model.

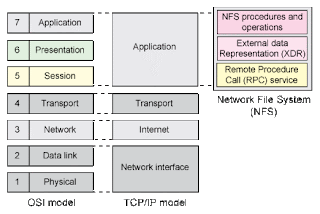

Figure 2. OSI - TCP/IP - NFS
Introduction
Often performance tuning is the last thing on your mind when you consider Network File Systems (NFS). You're so preoccupied with configuring your file systems properly and ensuring the security of your systems that you might routinely forget that the N in NFS stands for network. Unfortunately, if you don't pay attention to NFS tuning, you might have a poorly performing NFS. Fortunately, IBM has integrated several tools to help monitor and tune NFS on AIX, including nfsstat andnfsmo. This article describes that monitoring and tuning.
As in previous versions of AIX, AIX 7 supports NFS v2, v3, and v4 (with NFS v4 as the default). In general, NFS v4 should be used in preference to previous versions, since it is more efficient and generally handles the performance of large loads and busy network environments. Most modern client operating systems support NFS v4 so there should be no need to support the older versions.
You'll have to tune both the client and the server. This article explains how you can use netpmon to monitor read subroutines and write subroutines for NFS clients, as well as NFS servers. You can also use nmon for a quick snapshot of NFS activity, and you can describe how to use nmon to analyze historically based data. Using netstat, you can validate that your network is healthy, because poor network utilization (or a poorly designed configuration) can result in poor NFS performance. This article also examines utilities such as nfs4cl that can be used for a specific version of NFS. And you'll learn some best practices, including spreading I/O across as many spindles as possible. In this case, you want the CPU load to be the bottleneck, not your I/O system.
Unlike other tuning examples in this series, for NFS you must monitor (and possibly tune) all subsystems including CPU, memory, I/O, and the network. From a client perspective, NFS file systems use disks that are remotely attached. Anything that affects the performance of that mounted disk will affect the performance of the NFS clients. The article also discusses important daemons, such as nfsd and biod, and how they actually tune themselves. You can see the basic interactions between the client and server to help you understand what's going on behind the scenes. Finally, the article emphasizes that, regardless of which subsystem you are tuning, systems tuning is an on-going process. Of course, the best time to start monitoring your systems is from the beginning, before you run into problems and users scream. Because there are so many factors that can influence NFS performance, make changes only one at a time so that you can accurately assess the impact of your change.
Reviewing NFS
This section offers an overview of the NFS as it relates to AIX 7. You can learn how the client and server relate to one another and the various factors that influence NFS performance.
You can choose the version type during the actual mounting of the file system, and you can have different versions of NFS running on the server. NFS now supports both TCP and UDP. Because UDP is faster (it does less), some environments that demand optimum performance (on a LAN) over reliability might perform better with UDP. TCP is more reliable (by establishing connections), and it also provides better performance over a WAN, because its flow control helps minimize network latency.
A benefit of NFS is that it acts independently of machine types and operating systems. It does this through its use of Remote Procedure Calls (RPCs), as shown below in Figure 1.
Figure 1. Interaction between client and server
Figure 1 shows how NFS clients A and B access the data off NFS server Z. The client computers first request access to the exported data by mounting the file system. Then, when the client thread tries to process data within the NFS mounted file system, the data is redirected to biod, which takes the data through the LAN to the NFS server and its nfsd daemon. The server uses nfds to export the directories that are available to its clients.
As you can tell, you'll need to tune the network and I/O parameters. If Server Z is performing poorly, that obviously affects all of its NFS clients. If possible, tune the server specifically to function as an NFS server (more about that later).
What about the biod daemon? This daemon is required to perform both read-ahead and write-behind requests. The bioddaemon improves overall NFS performance as it either empties or fills up the buffer cache, acting as a liaison of the client applications. As shown in Figure 1, the biod daemon sends the requests to the server. On the other hand, nfsd is the liaison that provides NFS services to clients. When the server receives biod communication from the client, the server uses the nfsddaemon until the request is completed.
How is it that NFS was not stateful until Version 4, even though it could use TCP as early as Version 2? Figure 2 shows where NFS resides in relation to the TCP/IP stack and the OSI model.
Figure 2. OSI - TCP/IP - NFS
NFS does not reside on the transport stack, because NFS uses Remote Procedure Calls (RPCs). RPCs are a library of procedures that allow the client and server processes to execute system calls as if they were executed in their own address spaces. In a typical UDP NFS Version 2 or 3 implementation, the NFS server sends its client a type of cookie after the clients are authorized to share the volume. This helps minimize network traffic. The problem is that if the server goes down, clients will continue to inundate the network with requests. That is why there is a preference for using TCP. Only Version 4 can use stateful connections, and only Version 4 uses TCP as its transport protocol.
NFS Version 4 has no interaction with portmapper or other daemons, such as lockd and statd, because they are rolled into the kernel. In versions other than Version 4, portmapper is used to register RPC services and to provide the port numbers for the communication between clients and servers. External Data Representation (XDR) provides the mechanism that RPC and NFS use to ensure reliable data exchange between the client and the server. It does so in a way that is platform independent for the exchange of binary data. This addresses the possibility of systems representing data in different ways. Using XDR, data can be interpreted correctly, even on platforms that are not alike.
NFS Version 4 has no interaction with portmapper or other daemons, such as lockd and statd, because they are rolled into the kernel. In versions other than Version 4, portmapper is used to register RPC services and to provide the port numbers for the communication between clients and servers. External Data Representation (XDR) provides the mechanism that RPC and NFS use to ensure reliable data exchange between the client and the server. It does so in a way that is platform independent for the exchange of binary data. This addresses the possibility of systems representing data in different ways. Using XDR, data can be interpreted correctly, even on platforms that are not alike.
Monitoring
This section provides an overview of the tools available to you to monitor your NFS systems. These tools enable you to troubleshoot a performance problem quickly and capture data for historical trending and analysis. Some tools are used more often for the server, while other tools are used more for the client. This section covers nmon, topas, nfsstat, nfs, nfs4cl, and netpmon.
This section provides an overview of the tools available to you to monitor your NFS systems. These tools enable you to troubleshoot a performance problem quickly and capture data for historical trending and analysis. Some tools are used more often for the server, while other tools are used more for the client. This section covers nmon, topas, nfsstat, nfs, nfs4cl, and netpmon.
nmon and topas
For NFS tuning, you could use a tool like topas or nmon initially, because they provide a nice dashboard view of what is happening in your system. Remember that NFS performance problems might not be related to your NFS subsystem at all. Your bottleneck might be on the network or, from a server perspective, on your CPU or Disk I/O. Running a tool like topas or nmoncan quickly enable you to get a sense of what the real issues are. The example system in this article has two CPUs, and it is running AIX 5.3 TL6.
Figure 3 shows nmon output from an NFS perspective.
Figure 3. nmon output
Using nmon, there is a lot of information that is available to you from an NFS (client and server) perspective. There are no current bottlenecks at all on this system. Though topas has improved recently with its ability to capture data, nmon might still be a better choice. While nmon provides a front-end similar to topas, nmon is more useful in terms of long-term trending and analyses. Further, nmon provides the system administrator the capability to output data to a Microsoft® Excel spreadsheet that yields good looking charts (tailored for senior management and functional teams) that clearly illustrate your bottlenecks. This is done through a tool called nmon analyzer, which provides the hooks into nmon. The nmon analyzer is available as a free download (see Resources).
How can you use nmon to capture data and import it into the analyzer? Using sudo, first run nmon for 3 hours, taking a snapshot every 60 seconds: # sudo nmon -f -t -r test1 -s 60 -c 180. Then sort the output file that gets created: # sort -A systemnfs_yymmdd.nmon > systemnfs_yymmdd.csv.
Next, ftp the .csv file to your computer, start the nmon analyzer (enable macros), and click analyze nmon data.
For NFS tuning, you could use a tool like topas or nmon initially, because they provide a nice dashboard view of what is happening in your system. Remember that NFS performance problems might not be related to your NFS subsystem at all. Your bottleneck might be on the network or, from a server perspective, on your CPU or Disk I/O. Running a tool like topas or nmoncan quickly enable you to get a sense of what the real issues are. The example system in this article has two CPUs, and it is running AIX 5.3 TL6.
Figure 3 shows nmon output from an NFS perspective.
Figure 3. nmon output
Using nmon, there is a lot of information that is available to you from an NFS (client and server) perspective. There are no current bottlenecks at all on this system. Though topas has improved recently with its ability to capture data, nmon might still be a better choice. While nmon provides a front-end similar to topas, nmon is more useful in terms of long-term trending and analyses. Further, nmon provides the system administrator the capability to output data to a Microsoft® Excel spreadsheet that yields good looking charts (tailored for senior management and functional teams) that clearly illustrate your bottlenecks. This is done through a tool called nmon analyzer, which provides the hooks into nmon. The nmon analyzer is available as a free download (see Resources).
How can you use nmon to capture data and import it into the analyzer? Using sudo, first run nmon for 3 hours, taking a snapshot every 60 seconds: # sudo nmon -f -t -r test1 -s 60 -c 180. Then sort the output file that gets created: # sort -A systemnfs_yymmdd.nmon > systemnfs_yymmdd.csv.
Next, ftp the .csv file to your computer, start the nmon analyzer (enable macros), and click analyze nmon data.
nfsstat
The nfsstat tool is arguably the most important tool you'll use. This command displays all types of information about NFS and RPC calls. nfsstat is used as a monitoring tool to troubleshoot problems and for performance tuning. Depending on the flags you use, you can use nfsstat to display NFS client or server information. It can also show the actual usage count of file system operation. This helps you understand exactly how each file system is utilized, so that you can understand how to best tune your system.
Look at the client flag (c) first. The r flag gives the RPC information (see Listing 1).
Listing 1. Running nfsstat with the c flag
root@lpar24ml162f_pub[/] > nfsstat -cr
l488pp065_pub[/tmp] > nfsstat -cr
Client rpc:
Connection oriented
calls badcalls badxids timeouts newcreds badverfs timers
279 0 0 0 0 0 0
nomem cantconn interrupts
0 0 0
Connectionless
calls badcalls retrans badxids timeouts newcreds badverfs
24 0 0 0 0 0 0
timers nomem cantsend
0 0 0
What does this mean? Here are some of the connection-oriented parameters:
calls —Number of received RPC calls
badcalls —Number of calls rejected by the RPC layers
badxids —Number of times a server reply was received that did not correspond to any outstanding call
timeouts —Number of times calls timed-out while waiting for replies from the server
newcreds —Number of times authentication information was refreshed
badverfs —Number of times the call failed due to a bad verifier in the response
If you notice a large number of timeouts or badxids, you could benefit by increasing the timeo parameter with the mount command (details to come).
Look at the client flag (c) first. The r flag gives the RPC information (see Listing 1).
Listing 1. Running nfsstat with the c flag
root@lpar24ml162f_pub[/] > nfsstat -cr
l488pp065_pub[/tmp] > nfsstat -cr
Client rpc:
Connection oriented
calls badcalls badxids timeouts newcreds badverfs timers
279 0 0 0 0 0 0
nomem cantconn interrupts
0 0 0
Connectionless
calls badcalls retrans badxids timeouts newcreds badverfs
24 0 0 0 0 0 0
timers nomem cantsend
0 0 0
What does this mean? Here are some of the connection-oriented parameters:
calls —Number of received RPC calls
badcalls —Number of calls rejected by the RPC layers
badxids —Number of times a server reply was received that did not correspond to any outstanding call
timeouts —Number of times calls timed-out while waiting for replies from the server
newcreds —Number of times authentication information was refreshed
badverfs —Number of times the call failed due to a bad verifier in the response
If you notice a large number of timeouts or badxids, you could benefit by increasing the timeo parameter with the mount command (details to come).
nfs
Now look at the nfs information (the n flag) in Listing 2.
Listing 2. nfs n flag information
l488pp065_pub[/tmp] > nfsstat -cn
Client nfs:
calls badcalls clgets cltoomany
279 0 0 0
Version 2: (0 calls)
null getattr setattr root lookup readlink read
0 0% 0 0% 0 0% 0 0% 0 0% 0 0% 0 0%
wrcache write create remove rename link symlink
0 0% 0 0% 0 0% 0 0% 0 0% 0 0% 0 0%
mkdir rmdir readdir statfs
0 0% 0 0% 0 0% 0 0%
Version 3: (279 calls)
null getattr setattr lookup access readlink read
0 0% 126 45% 14 5% 9 3% 17 6% 0 0% 1 0%
write create mkdir symlink mknod remove rmdir
51 18% 6 2% 0 0% 0 0% 0 0% 0 0% 0 0%
rename link readdir readdir+ fsstat fsinfo pathconf
0 0% 0 0% 1 0% 1 0% 1 0% 1 0% 0 0%
commit
51 18%
What does this mean? Version 3 parameters include:
calls —Number of received NFS calls
badcalls —Number of calls rejected by the NFS layers
clgets —Number of times a client handle was received
cltoomany —Number of times the client handle had no unused entries
You should check that the badcalls number is not too high (you can calculate a simple percentage against the calls statistic). Unfortunately, the cltoomany statistic provides evidence of a problem, but there is no way to address the problem.
For the remainder of the statistics, you get a count of the individual operations. This is useful only to determine if you are handling high numbers of reads or writes, in which case you may want to reorganize your disk and NFS sharing allocations.
nfs4cl
If you're running NFS Version 4, you might be using nfs4cl more often. This command displays NFS Version 4 statistics and properties (see Listing 3).
Listing 3. Using nfs4cl
l488pp065_pub[/tmp] > nfs4cl showfs
Server Remote Path fsid Local Path
-------- --------------- --------------- ---------------
After running this command, you see that there is no output. Run the mount command to see more detail (see Listing 4).
Listing 4. Running the mount command
l488pp065_pub[/tmp] > mount
node mounted mounted over vfs date options
-------- --------------- --------------- ------ ------------ ---------------
/dev/hd4 / jfs2 Jul 30 03:16 rw,log=/dev/hd8
/dev/hd2 /usr jfs2 Jul 30 03:16 rw,log=/dev/hd8
/dev/hd9var /var jfs2 Jul 30 03:16 rw,log=/dev/hd8
/dev/hd3 /tmp jfs2 Jul 30 03:16 rw,log=/dev/hd8
/dev/hd1 /home jfs2 Jul 30 03:16 rw,log=/dev/hd8
/dev/hd11admin /admin jfs2 Jul 30 03:16 rw,log=/dev/hd8
/proc /proc procfs Jul 30 03:16 rw
/dev/hd10opt /opt jfs2 Jul 30 03:16 rw,log=/dev/hd8
/dev/livedump /var/adm/ras/livedump jfs2 Jul 30 03:16 rw,log=/dev/hd8
192.168.1.11 /userdata/20009539 /home/u0009539 nfs3 Jul 30 03:22 bg,hard,intr,rw
/dev/fslv00 /wpars/webserver1 jfs2 Aug 13 09:42 rw,log=INLINE
/dev/fslv01 /wpars/webserver1/home jfs2 Aug 13 09:42 rw,log=INLINE
/opt /wpars/webserver1/opt namefs Aug 13 09:42 ro
/proc /wpars/webserver1/proc namefs Aug 13 09:42 rw
/dev/fslv02 /wpars/webserver1/tmp jfs2 Aug 13 09:42 rw,log=INLINE
/usr /wpars/webserver1/usr namefs Aug 13 09:42 ro
/dev/fslv03 /wpars/webserver1/var jfs2 Aug 13 09:42 rw,log=INLINE
As you can see, there are no file systems mounted using NFS Version 4. The nfs4cl command can also be used to set tunable parameters for NFS v4 filesystems, only NFS Version 3. You do this by using the setfsoptions subcommand to tune NFS Version 4.
Some of the key parameters you can configure include:
acdirmax and acdirmin—Specifies the upper and lower limit for the directory attribute cache time out value. You can tune these values to set the timeout in seconds that directory entries are retained in the cache after files have been changed. Setting too high a value can lead to file information being stale.
acregmax and acregmin—Specifies the upper and lower limit for the file attribute cache time out value. You can tune these values to set the timeout in seconds that file cache information is kept.
cio—Specifies that the filesystem should be mounted with support for concurrent readers and writers.
dio—Specifies that I/O on the filesystem behaves as if all of the files were opened using the direct I/O method, which can provide much faster performance with certain workloads.
rbr—Enables the release-behind-when-reading capability. This frees up NFS cache pages used to hold file data as soon as they have been copied to internal buffers. It can be useful to set this option if you are using NFS as temporary or transient storage for development servers. When the contents of the files are regularly changing, or you are regularly reading a wide variety of files, caching the file information may not achieve any performance benefits.
Listing 5 below shows you how to do it.
Now look at the nfs information (the n flag) in Listing 2.
Listing 2. nfs n flag information
l488pp065_pub[/tmp] > nfsstat -cn
Client nfs:
calls badcalls clgets cltoomany
279 0 0 0
Version 2: (0 calls)
null getattr setattr root lookup readlink read
0 0% 0 0% 0 0% 0 0% 0 0% 0 0% 0 0%
wrcache write create remove rename link symlink
0 0% 0 0% 0 0% 0 0% 0 0% 0 0% 0 0%
mkdir rmdir readdir statfs
0 0% 0 0% 0 0% 0 0%
Version 3: (279 calls)
null getattr setattr lookup access readlink read
0 0% 126 45% 14 5% 9 3% 17 6% 0 0% 1 0%
write create mkdir symlink mknod remove rmdir
51 18% 6 2% 0 0% 0 0% 0 0% 0 0% 0 0%
rename link readdir readdir+ fsstat fsinfo pathconf
0 0% 0 0% 1 0% 1 0% 1 0% 1 0% 0 0%
commit
51 18%
What does this mean? Version 3 parameters include:
calls —Number of received NFS calls
badcalls —Number of calls rejected by the NFS layers
clgets —Number of times a client handle was received
cltoomany —Number of times the client handle had no unused entries
You should check that the badcalls number is not too high (you can calculate a simple percentage against the calls statistic). Unfortunately, the cltoomany statistic provides evidence of a problem, but there is no way to address the problem.
For the remainder of the statistics, you get a count of the individual operations. This is useful only to determine if you are handling high numbers of reads or writes, in which case you may want to reorganize your disk and NFS sharing allocations.
nfs4cl
If you're running NFS Version 4, you might be using nfs4cl more often. This command displays NFS Version 4 statistics and properties (see Listing 3).
Listing 3. Using nfs4cl
l488pp065_pub[/tmp] > nfs4cl showfs
Server Remote Path fsid Local Path
-------- --------------- --------------- ---------------
After running this command, you see that there is no output. Run the mount command to see more detail (see Listing 4).
Listing 4. Running the mount command
l488pp065_pub[/tmp] > mount
node mounted mounted over vfs date options
-------- --------------- --------------- ------ ------------ ---------------
/dev/hd4 / jfs2 Jul 30 03:16 rw,log=/dev/hd8
/dev/hd2 /usr jfs2 Jul 30 03:16 rw,log=/dev/hd8
/dev/hd9var /var jfs2 Jul 30 03:16 rw,log=/dev/hd8
/dev/hd3 /tmp jfs2 Jul 30 03:16 rw,log=/dev/hd8
/dev/hd1 /home jfs2 Jul 30 03:16 rw,log=/dev/hd8
/dev/hd11admin /admin jfs2 Jul 30 03:16 rw,log=/dev/hd8
/proc /proc procfs Jul 30 03:16 rw
/dev/hd10opt /opt jfs2 Jul 30 03:16 rw,log=/dev/hd8
/dev/livedump /var/adm/ras/livedump jfs2 Jul 30 03:16 rw,log=/dev/hd8
192.168.1.11 /userdata/20009539 /home/u0009539 nfs3 Jul 30 03:22 bg,hard,intr,rw
/dev/fslv00 /wpars/webserver1 jfs2 Aug 13 09:42 rw,log=INLINE
/dev/fslv01 /wpars/webserver1/home jfs2 Aug 13 09:42 rw,log=INLINE
/opt /wpars/webserver1/opt namefs Aug 13 09:42 ro
/proc /wpars/webserver1/proc namefs Aug 13 09:42 rw
/dev/fslv02 /wpars/webserver1/tmp jfs2 Aug 13 09:42 rw,log=INLINE
/usr /wpars/webserver1/usr namefs Aug 13 09:42 ro
/dev/fslv03 /wpars/webserver1/var jfs2 Aug 13 09:42 rw,log=INLINE
As you can see, there are no file systems mounted using NFS Version 4. The nfs4cl command can also be used to set tunable parameters for NFS v4 filesystems, only NFS Version 3. You do this by using the setfsoptions subcommand to tune NFS Version 4.
Some of the key parameters you can configure include:
acdirmax and acdirmin—Specifies the upper and lower limit for the directory attribute cache time out value. You can tune these values to set the timeout in seconds that directory entries are retained in the cache after files have been changed. Setting too high a value can lead to file information being stale.
acregmax and acregmin—Specifies the upper and lower limit for the file attribute cache time out value. You can tune these values to set the timeout in seconds that file cache information is kept.
cio—Specifies that the filesystem should be mounted with support for concurrent readers and writers.
dio—Specifies that I/O on the filesystem behaves as if all of the files were opened using the direct I/O method, which can provide much faster performance with certain workloads.
rbr—Enables the release-behind-when-reading capability. This frees up NFS cache pages used to hold file data as soon as they have been copied to internal buffers. It can be useful to set this option if you are using NFS as temporary or transient storage for development servers. When the contents of the files are regularly changing, or you are regularly reading a wide variety of files, caching the file information may not achieve any performance benefits.
Listing 5 below shows you how to do it.
Listing 5. Tuning timeo with nfs4cl
root@lpar24ml162f_pub[/] > nfs4cl setfsoptions mnt rbr=7
Remember that you can also use the mount command to tune timeo.
root@lpar24ml162f_pub[/] > nfs4cl setfsoptions mnt rbr=7
Remember that you can also use the mount command to tune timeo.
netpmon
The netpmon command can be used to help troubleshoot NFS bottlenecks. In addition to monitoring many other types of network statistics, netpmon also monitors for clients: both read and write subroutines and NFS RPC requests. For servers,netpmon monitors read and write requests. netpmon starts a trace and runs in the background until you stop it (see Listing 6).
Listing 6. Using netpmon
l488pp065_pub[/tmp] > netpmon -T 2000000 -o /tmp/net.out
Run trcstop command to signal end of trace.
Sun Aug 15 04:58:06 2010
System: AIX 7.1 Node: l488pp065_pub Machine: 00F604884C00
Listing 7 below shows you how to stop the trace.
Listing 7. Stopping a trace
l488pp065_pub[/tmp] > trcstop[netpmon: Reporting started]
23675650 Missed Entries found
[netpmon: Reporting completed]
[ 4 traced cpus ]
[ 0.091 secs total preempt time ]
The output file
Now look at the NFS-specific information provided for in the output file (see Listing 8).
Listing 8. NFS-specific information in the output file
NFSv3 Client RPC Statistics (by Server):
----------------------------------------
Server Calls/s
----------------------------------
p650 126.68
------------------------------------------------------------------------
Total (all servers) 126.68
Detailed NFSv3 Client RPC Statistics (by Server):
-------------------------------------------------
SERVER: p650
calls: 5602
call times (msec): avg 1.408 min 0.274 max 979.611 sdev 21.310
COMBINED (All Servers)
calls: 5602
call times (msec): avg 1.408 min 0.274 max 979.611 sdev 21.310
Using netpmon, you can see the NFS Version 3 Client statistics by Server. Note that while netpmon is a useful trace utility, the performance overhead can sometimes outweigh its benefits; particularly when there are other ways to get similar information, so be aware of that when using this utility.
Tuning with nfsmo and mount
This section describes specific nfs tuning commands. Use nfsmo to set and display your nfsstat tuning parameters. Use mount to tune NFS server-based resources, which take effect only after mounting the NFS file system.
Client
The biod daemon plays an important role in connectivity. While biod self-tunes the number of threads (the daemon process creates and kills threads as needed), the maximum number of biod threads can be tuned, depending on the overall load. An important concept to understand here is that only increasing the number of threads will not alleviate performance problems caused by CPU, I/O, or memory bottlenecks. For example, if your CPU is near 100% utilization, increasing the amount of threads does not help you at all. Increasing the number of threads can help when multiple application threads access the same files, and you do not find any other types of bottlenecks. Using lsof can help you further determine which threads are accessing which files.
The netpmon command can be used to help troubleshoot NFS bottlenecks. In addition to monitoring many other types of network statistics, netpmon also monitors for clients: both read and write subroutines and NFS RPC requests. For servers,netpmon monitors read and write requests. netpmon starts a trace and runs in the background until you stop it (see Listing 6).
Listing 6. Using netpmon
l488pp065_pub[/tmp] > netpmon -T 2000000 -o /tmp/net.out
Run trcstop command to signal end of trace.
Sun Aug 15 04:58:06 2010
System: AIX 7.1 Node: l488pp065_pub Machine: 00F604884C00
Listing 7 below shows you how to stop the trace.
Listing 7. Stopping a trace
l488pp065_pub[/tmp] > trcstop[netpmon: Reporting started]
23675650 Missed Entries found
[netpmon: Reporting completed]
[ 4 traced cpus ]
[ 0.091 secs total preempt time ]
The output file
Now look at the NFS-specific information provided for in the output file (see Listing 8).
Listing 8. NFS-specific information in the output file
NFSv3 Client RPC Statistics (by Server):
----------------------------------------
Server Calls/s
----------------------------------
p650 126.68
------------------------------------------------------------------------
Total (all servers) 126.68
Detailed NFSv3 Client RPC Statistics (by Server):
-------------------------------------------------
SERVER: p650
calls: 5602
call times (msec): avg 1.408 min 0.274 max 979.611 sdev 21.310
COMBINED (All Servers)
calls: 5602
call times (msec): avg 1.408 min 0.274 max 979.611 sdev 21.310
Using netpmon, you can see the NFS Version 3 Client statistics by Server. Note that while netpmon is a useful trace utility, the performance overhead can sometimes outweigh its benefits; particularly when there are other ways to get similar information, so be aware of that when using this utility.
Tuning with nfsmo and mount
This section describes specific nfs tuning commands. Use nfsmo to set and display your nfsstat tuning parameters. Use mount to tune NFS server-based resources, which take effect only after mounting the NFS file system.
Client
The biod daemon plays an important role in connectivity. While biod self-tunes the number of threads (the daemon process creates and kills threads as needed), the maximum number of biod threads can be tuned, depending on the overall load. An important concept to understand here is that only increasing the number of threads will not alleviate performance problems caused by CPU, I/O, or memory bottlenecks. For example, if your CPU is near 100% utilization, increasing the amount of threads does not help you at all. Increasing the number of threads can help when multiple application threads access the same files, and you do not find any other types of bottlenecks. Using lsof can help you further determine which threads are accessing which files.
In earlier tuning sections, you might remember the Virtual Memory Manager (VMM) parameters minperm and maxperm. Unlike when you tune database servers, with NFS you want to allow the VMM to use as much RAM as possible for NFS data caching. Most NFS clients have little need for working segment pages. To ensure that all memory is used for file caching, set themaxperm and maxclient both to 100%. In AIX 7 (and AIX 6), both parameters are restricted tunables, which means their limits are tightly controlled and limited (see Listing 9).
Listing 9. Setting maxperm and maxclient to 100 percent
l488pp065_pub[/tmp] > vmo -o maxperm%=100Setting maxperm% to 100
Warning: a restricted tunable has been modified
l488pp065_pub[/tmp] > vmo -o maxclient%=100Setting maxclient% to 100
Warning: a restricted tunable has been modified
Note that in the event that your application uses databases, and it could benefit from the application performing its own file data cache, you should not set maxperm and maxclient to 100%. In this instance, set these numbers low, and mount your file systems using Concurrent I/O over NFS. Note also that NFS maintains caches on each client system that contain attributes of the most recently accessed files and directories. The mount command controls the length of time that the entries are kept in cache. The mount parameters you can change are similar to those supported by nfs4cl.
Mount parameters rsize and wsize define the maximum sizes of RPC packets for read and write directories. The default value is 32768 bytes. With NFS Versions 3 and 4, if your NFS volumes are mounted on high-speed networks, you should increase this value to 65536. On the other hand, if your network is extremely slow, you might think about decreasing your default to reduce the amount of packet fragmentation by sending shorter packets. However, if you decrease the default, more packets will need to be sent, which could increase overall network utilization. Understand your network and tune it accordingly!
Server
Before looking at specific NFS parameters, always try to decrease the load on the network, while also looking at CPU and I/O subsystems. Bottlenecks often contribute to what appears to be an NFS-specific problem. For example, NFS can use either TCP or UDP, depending on the version and your preference. Make sure that your tcp_sendspace and tcp_recvspace are set to values higher than the defaults, because this can have an impact on your server by increasing network performance. These are not tuned with nfso, but with no (see Listing 10).
Listing 10. Setting tcp_sendspace and tcp_recvspace to values higher than the defaults
l488pp065_pub[/tmp] > no -a|grep send
ipsendredirects = 1
ipsrcroutesend = 1
send_file_duration = 300
tcp_sendspace = 16384
udp_sendspace = 9216
l488pp065_pub[/tmp] > no -o tcp_sendspace=524288Setting tcp_sendspace to 524288
Change to tunable tcp_sendspace, will only be effective for future connections
If you are running Version 4 of NFS, make sure you turn on nfs_rfc1323 (see Listing 11). This allows for TCP window sizes greater than 64KB. Set this on the client, as well.
Listing 11. Turning on nfs_rfc1323
l488pp065_pub[/tmp] > no -o rfc1323=1Setting rfc1323 to 1
Change to tunable rfc1323, will only be effective for future connections
Setting the rfc1323 with nfso sets the TCP window to affect only NFS (as opposed to no, which sets this across the board). If you already set this with no, you don't need to change this, though you might want to, in case some other UNIX® administrator decides to play around with the no commands.
Listing 9. Setting maxperm and maxclient to 100 percent
l488pp065_pub[/tmp] > vmo -o maxperm%=100Setting maxperm% to 100
Warning: a restricted tunable has been modified
l488pp065_pub[/tmp] > vmo -o maxclient%=100Setting maxclient% to 100
Warning: a restricted tunable has been modified
Note that in the event that your application uses databases, and it could benefit from the application performing its own file data cache, you should not set maxperm and maxclient to 100%. In this instance, set these numbers low, and mount your file systems using Concurrent I/O over NFS. Note also that NFS maintains caches on each client system that contain attributes of the most recently accessed files and directories. The mount command controls the length of time that the entries are kept in cache. The mount parameters you can change are similar to those supported by nfs4cl.
Mount parameters rsize and wsize define the maximum sizes of RPC packets for read and write directories. The default value is 32768 bytes. With NFS Versions 3 and 4, if your NFS volumes are mounted on high-speed networks, you should increase this value to 65536. On the other hand, if your network is extremely slow, you might think about decreasing your default to reduce the amount of packet fragmentation by sending shorter packets. However, if you decrease the default, more packets will need to be sent, which could increase overall network utilization. Understand your network and tune it accordingly!
Server
Before looking at specific NFS parameters, always try to decrease the load on the network, while also looking at CPU and I/O subsystems. Bottlenecks often contribute to what appears to be an NFS-specific problem. For example, NFS can use either TCP or UDP, depending on the version and your preference. Make sure that your tcp_sendspace and tcp_recvspace are set to values higher than the defaults, because this can have an impact on your server by increasing network performance. These are not tuned with nfso, but with no (see Listing 10).
Listing 10. Setting tcp_sendspace and tcp_recvspace to values higher than the defaults
l488pp065_pub[/tmp] > no -a|grep send
ipsendredirects = 1
ipsrcroutesend = 1
send_file_duration = 300
tcp_sendspace = 16384
udp_sendspace = 9216
l488pp065_pub[/tmp] > no -o tcp_sendspace=524288Setting tcp_sendspace to 524288
Change to tunable tcp_sendspace, will only be effective for future connections
If you are running Version 4 of NFS, make sure you turn on nfs_rfc1323 (see Listing 11). This allows for TCP window sizes greater than 64KB. Set this on the client, as well.
Listing 11. Turning on nfs_rfc1323
l488pp065_pub[/tmp] > no -o rfc1323=1Setting rfc1323 to 1
Change to tunable rfc1323, will only be effective for future connections
Setting the rfc1323 with nfso sets the TCP window to affect only NFS (as opposed to no, which sets this across the board). If you already set this with no, you don't need to change this, though you might want to, in case some other UNIX® administrator decides to play around with the no commands.
Similar to the client, if the server is a dedicated NFS server, make sure that you tune your VMM parameters accordingly. Modify the maxperm and maxclient parameters to 100% to make sure that the VMM controls the caching of the page files using as much memory as possible in the process. On the server, tune nfsd, which is multithreaded, like you tuned biod(other daemons you can tune include rpc.mountd and rpc.lockd). Like biod, nfsd self-tunes, depending on the load. Increase the number of threads with the nfso command. One such parameter is nfs_max_read_size, which sets the maximum size of RPCs for read replies.
Look at what nfs_max_read_size is set to in Listing 12.
Listing 12. Setting the nfs_max_read_size parameter
l488pp065_pub[/tmp] > nfso -L nfs_max_read_size
NAME CUR DEF BOOT MIN MAX UNIT TYPE
DEPENDENCIES
--------------------------------------------------------------------------------
nfs_max_read_size 64K 64K 64K 512 64K Bytes D
-------------------------------------------------------------------------------
There are more parameters you can modify. To list all the parameters, use the -a or -L flag. -L provides more information in a nicer format (see Listing 13).
Listing 13. Using the -L flag with the nfso command
l488pp065_pub[/tmp] > nfso -L
NAME CUR DEF BOOT MIN MAX UNIT TYPE
DEPENDENCIES
--------------------------------------------------------------------------------
client_delegation 1 1 1 0 1 On/Off D
--------------------------------------------------------------------------------
nfs_max_read_size 64K 64K 64K 512 64K Bytes D
--------------------------------------------------------------------------------
nfs_max_write_size 64K 64K 64K 512 64K Bytes D
--------------------------------------------------------------------------------
nfs_rfc1323 1 1 1 0 1 On/Off D
--------------------------------------------------------------------------------
nfs_securenfs_authtimeout 0 0 0 0 60 Seconds D
--------------------------------------------------------------------------------
nfs_server_base_priority 0 0 0 31 125 Pri D
--------------------------------------------------------------------------------
nfs_server_clread 1 1 1 0 1 On/Off D
--------------------------------------------------------------------------------
nfs_use_reserved_ports 0 0 0 0 1 On/Off D
--------------------------------------------------------------------------------
nfs_v3_server_readdirplus 1 1 1 0 1 On/Off D
--------------------------------------------------------------------------------
nfs_v4_fail_over_timeout 0 0 0 0 3600 Seconds D
--------------------------------------------------------------------------------
portcheck 0 0 0 0 1 On/Off D
--------------------------------------------------------------------------------
server_delegation 1 1 1 0 1 On/Off D
--------------------------------------------------------------------------------
utf8_validation 1 1 1 0 1 On/Off D
--------------------------------------------------------------------------------
Now you have a nice list of parameters you can modify!
Summary
This article discussed the Network File System (NFS), including its history and versions. It defined and discussed the NFS I/O stack and how the stack relates to both the OSI model and the TCP/IP stack. The article discussed best practices for disk configuration and VMM tuning in an NFS environment.
You examined the differences between tuning your clients and servers. You monitored your overall network and drilled down to the NFS layer during the monitoring. Further, you tuned your systems using nfso and mount.
In the next part of the series, you'll drill down to the actual networking packets. This will include a more detailed discussion ofnetstat. You'll also learn how to tune your network subsystem using the no utility.
Listing 12. Setting the nfs_max_read_size parameter
l488pp065_pub[/tmp] > nfso -L nfs_max_read_size
NAME CUR DEF BOOT MIN MAX UNIT TYPE
DEPENDENCIES
--------------------------------------------------------------------------------
nfs_max_read_size 64K 64K 64K 512 64K Bytes D
-------------------------------------------------------------------------------
There are more parameters you can modify. To list all the parameters, use the -a or -L flag. -L provides more information in a nicer format (see Listing 13).
Listing 13. Using the -L flag with the nfso command
l488pp065_pub[/tmp] > nfso -L
NAME CUR DEF BOOT MIN MAX UNIT TYPE
DEPENDENCIES
--------------------------------------------------------------------------------
client_delegation 1 1 1 0 1 On/Off D
--------------------------------------------------------------------------------
nfs_max_read_size 64K 64K 64K 512 64K Bytes D
--------------------------------------------------------------------------------
nfs_max_write_size 64K 64K 64K 512 64K Bytes D
--------------------------------------------------------------------------------
nfs_rfc1323 1 1 1 0 1 On/Off D
--------------------------------------------------------------------------------
nfs_securenfs_authtimeout 0 0 0 0 60 Seconds D
--------------------------------------------------------------------------------
nfs_server_base_priority 0 0 0 31 125 Pri D
--------------------------------------------------------------------------------
nfs_server_clread 1 1 1 0 1 On/Off D
--------------------------------------------------------------------------------
nfs_use_reserved_ports 0 0 0 0 1 On/Off D
--------------------------------------------------------------------------------
nfs_v3_server_readdirplus 1 1 1 0 1 On/Off D
--------------------------------------------------------------------------------
nfs_v4_fail_over_timeout 0 0 0 0 3600 Seconds D
--------------------------------------------------------------------------------
portcheck 0 0 0 0 1 On/Off D
--------------------------------------------------------------------------------
server_delegation 1 1 1 0 1 On/Off D
--------------------------------------------------------------------------------
utf8_validation 1 1 1 0 1 On/Off D
--------------------------------------------------------------------------------
Now you have a nice list of parameters you can modify!
Summary
This article discussed the Network File System (NFS), including its history and versions. It defined and discussed the NFS I/O stack and how the stack relates to both the OSI model and the TCP/IP stack. The article discussed best practices for disk configuration and VMM tuning in an NFS environment.
You examined the differences between tuning your clients and servers. You monitored your overall network and drilled down to the NFS layer during the monitoring. Further, you tuned your systems using nfso and mount.
In the next part of the series, you'll drill down to the actual networking packets. This will include a more detailed discussion ofnetstat. You'll also learn how to tune your network subsystem using the no utility.
No comments:
Post a Comment
